• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160292

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2N1639 2N1638 2N1638 2N406 2N408 2N408 2N408 1N87A

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

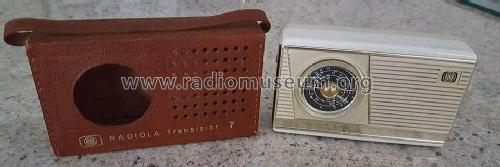

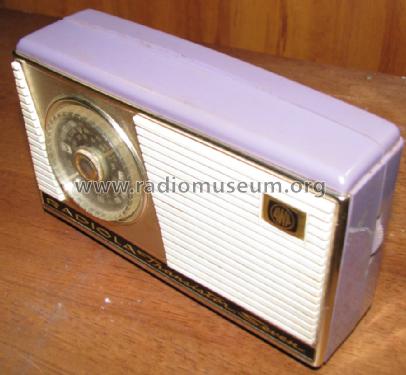

• Model: Radiola Transistor 7 B19Z - Amalgamated Wireless

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 6.125 x 3.625 x 2 inch / 156 x 92 x 51 mm

• Notes
• AWA Radiola Transistor 7;

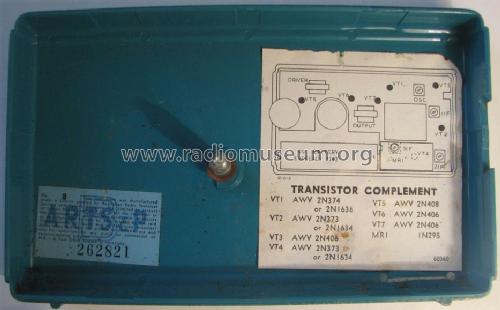

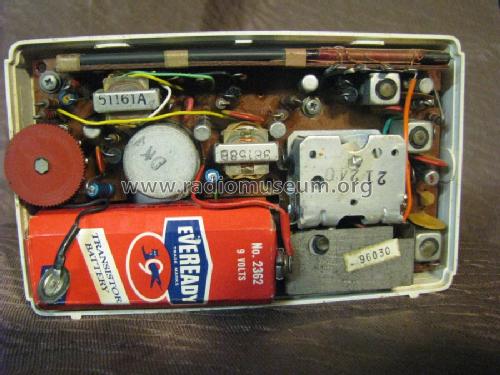

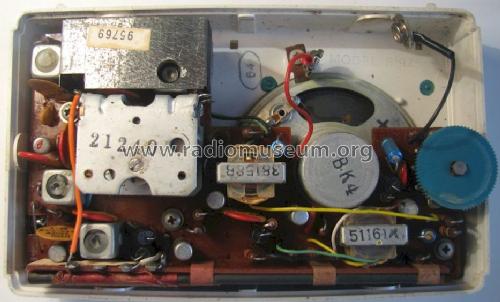

  Cycle dial, aqua & white plastic casing with a gold anodised front finish, earphones jack, transformer amplifier driver & output stage, transistor & diode placement: 2N374 or 2N1636, 2N373 or 2N1634, 2N406, 2N373 or 2N1634, 2N408, 2N406, 2N406, 1N295.

• Net weight (2.2 lb = 1 kg)
• 1 lb 4 oz (1.25 lb) / 0.568 kg

• Literature/Schematics (1)

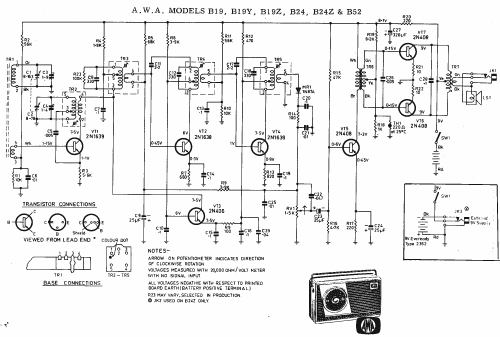

• - - Manufacturers Literature (AWA Manufacturers Supervice Service for models B19, B19Y, B19Z, B24, B24Z & B52, Feb 1966.)

• Literature/Schematics (2)
• J.R. Publications Transistor Radio Service Handbook (Group C3, 1966, Page A3.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 1430 models, 873 with images and 463 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
