Radiola Transistor Seven B24Z
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285870
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radiola Transistor Seven B24Z - Amalgamated Wireless
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 3.75 x 6.375 x 2 inch / 95 x 162 x 51 mm
- Net weight (2.2 lb = 1 kg)
- 1 lb 8 oz (1.5 lb) / 0.681 kg
- Literature/Schematics (1)

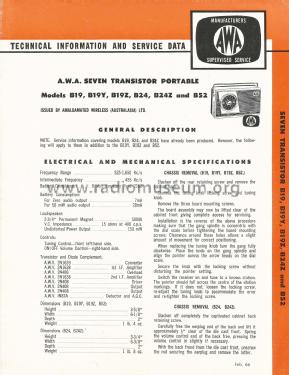

- - - Manufacturers Literature (AWA service data sheets for model B19, B19Y, B19Z, B24, B24Z & B52.)
- Literature/Schematics (2)

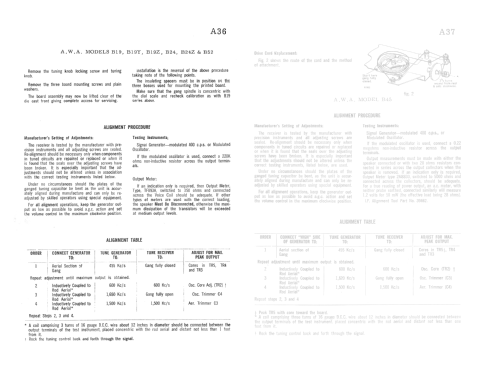

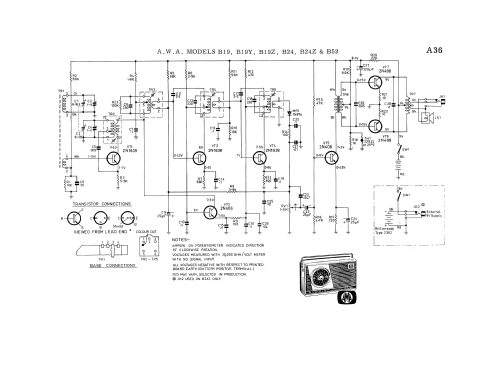

- -- Schematic (J.R. Publications Transistor Service Handbook Group C3, 1966, Page A36.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
