• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88521

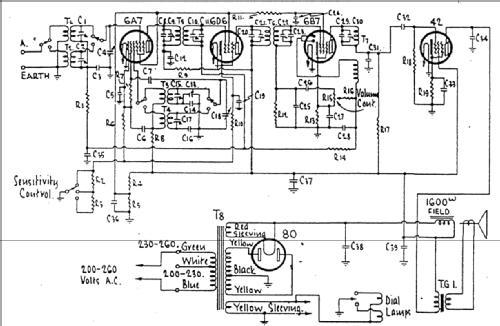

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6B7 42 80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; Reflex

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 200-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Radiolette 33 - Amalgamated Wireless

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 310 x 330 x 210 mm / 12.2 x 13 x 8.3 inch

• Notes

• AWA produced a series of Bakelite, Fret and Foot radios in 1936 and 1937.

  Radiolette models R33, R33A, R35, R35A, R38A, R38B, R38C, R39A, R39B, R39C, R40A, R40B and R40C.

  The Model 33 was produced in black Redelec with contrasting green fret and feet.

  The 2nd IF stage (valve 6B7) is reflexed as the 1st AF stage.

  Fret and Foot was not the official AWA name for the classic Fisk Tombstone Radiolette but they are unique with a cabinet of a square block of Bakelite along Art Deco lines with curved edges which are complemented by a contrasting colour, Asian influenced speaker grill fret and Lion’s paws as feet.

  The unique design is a tribute to the Bakelite designer’s art of the era which made them very appealing to worldwide collectors.

  They are now known colloquially as the AWA Radiolette, Fret and Foot series of radios.

• Price in first year of sale
• 19.95 AUS £

• Source of data
• -- Original-techn. papers.

• Mentioned in
• AWA Radiolette Book 1932-1949 (Edition 4, Jan 2018, Pages 68, 74 & 77)

• Literature/Schematics (1)
• - - Manufacturers Literature (Radiola Service Manual 1936, Page 14.)

• Literature/Schematics (2)
• Radio Review of Australia (February 1938, Page 43.)

• Literature/Schematics (3)
• Radio Trade Annual of Australia (6th Edition 1938, Page 312.)

• Author
• Model page created by Peter Hughes. See "Data change" for further contributors.
