Radiolette 47

Amalgamated Wireless Australasia (NZ) Ltd. (AWA); Wellington

Data
Forum
Pictures
Collections

  • Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 349978

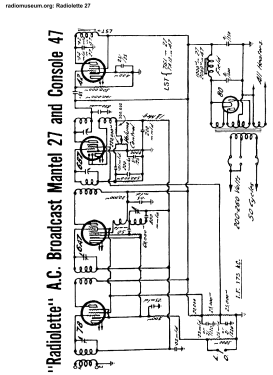

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 200-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiolette 47 - Amalgamated Wireless
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 20 x 36 x 10 inch / 508 x 914 x 254 mm
  • Notes

  • The Radiolette 47 Console is a 5-valve reflexed superhet with IF 175 kHz: 78 as RF amp, 6A7 as oscillator/1st det., 6B7 reflexed IF amp/2nd detector, AVC rectifier and audio amp., 42 output and 80 rectifier.

    The Radiolette console is delightfully proportioned and refined in design. The front and ends are richly patterned with choice Queensland walnut ribbed veneer. The grille panel is set back and Faced with Queensland walnut butt veneer. With its rubbed lacquer finish it is a cabinet of real distinction. £22.17.6.

    The same chassis is used in the Radiolette Model 27.

    See also Australian version AWA Radiolette 47.

  • Price in first year of sale
  • 22.88 NZ £
  • Mentioned in
  • -- Original prospect or advert (Wanganui Chronicle 23 May 1934 Page 10)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
