• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177671

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A8G 6G8G 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-230; 230-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

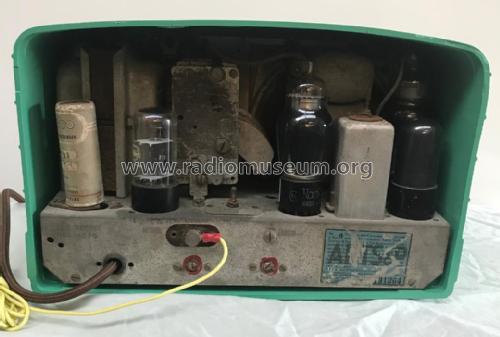

• Model: Radiolette 500M-Z - Amalgamated Wireless

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 188 x 160 mm / 11.4 x 7.4 x 6.3 inch

• Notes

• 4 Valve Superhetrodyne, AC powered radio.

  This model uses the same cabinet design as the AWA Radiolette model 500M.

  Chassis also used in AGE F46ME.

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. V

• Literature/Schematics (1)
• Mingay's Radio Diagram & I.F. Index

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
