• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 184404

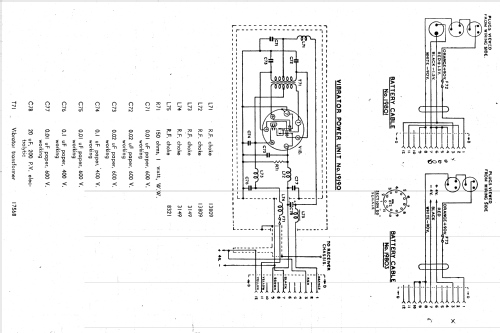

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1S5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 4 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Radiolette 514M - Amalgamated Wireless

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 290 x 188 x 165 mm / 11.4 x 7.4 x 6.5 inch

• Notes
• This model uses a synchronous vibrator and is powered from a specially made 4 volt accumulator. Same cabinet design as the Radiolette model 500M.

• Net weight (2.2 lb = 1 kg)
• 13 lb (13 lb 0 oz) / 5.902 kg

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VI

• Literature/Schematics (1)
• Mingay's Radio Diagram & I.F. Index

AWA 514-M 514-MZ 718-C Service Data

1795 KB

• Documents regarding this model

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
