Signal Generator R7231
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1942 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 322060
R7231 eBay item number:183545408107
R7231 Detail eBay item number:183545408107

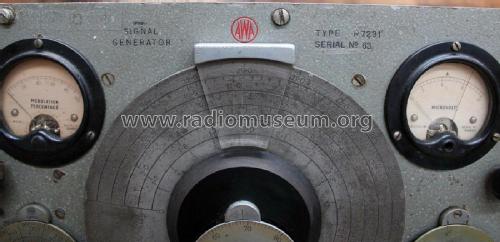

R7231 Dial. eBay item number:183545408107
- Number of Tubes
- 6
- Main principle
- 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 210-270 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Signal Generator R7231 - Amalgamated Wireless
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Notes
-
AWA signal generator Type R7231 with an integral AWA power supply unit type H8826.
This is a signal generator covers approximately 95 kHz to 30 MHz in 10 bands.
See also later version 2R7231.
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
