Signal Generator Type C 14R7490
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1944
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 180531

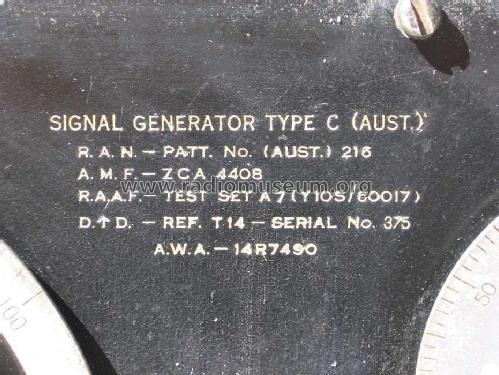

AWA Signal Generator type C model 14R7490.
- Number of Tubes
- 5
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Signal Generator Type C 14R7490 - Amalgamated Wireless
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 695 x 255 x 265 mm / 27.4 x 10 x 10.4 inch
- Notes
- This is a VHF signal generator covering 55 to 150 MHz in one range. It was mainly for military use.
- Net weight (2.2 lb = 1 kg)
- 33 kg / 72 lb 11 oz (72.687 lb)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
