• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 187706

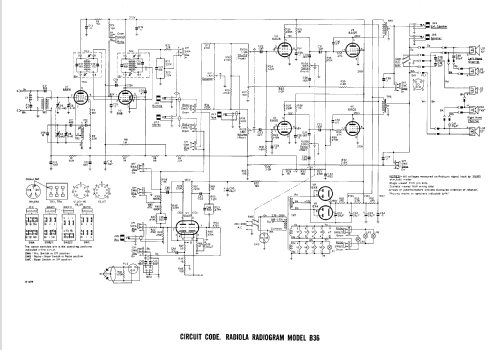

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6BE6 6N8 12AX7 6AU6 6AU6 6AQ5 6AQ5 6X4 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-230; 230-260 Volt

• Loudspeaker
• 5 Loudspeakers

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Regent Stereophonic Radiolagram B36 - Amalgamated Wireless

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 45.5 x 29 x 17.5 inch / 1156 x 737 x 445 mm

• Notes

• This model has two 12" woofers, two 7" by 5" mid-range speakers and one 2" tweeter.

  Cabinet finishes available in Walnut, Maple, Teak & Mahogany.

• Price in first year of sale
• 187.95 AUS £

• Literature/Schematics (1)
• - - Manufacturers Literature (AWA Manufacturers Supervised Service, March 1965.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Group 1, September 1966, Page A142.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
