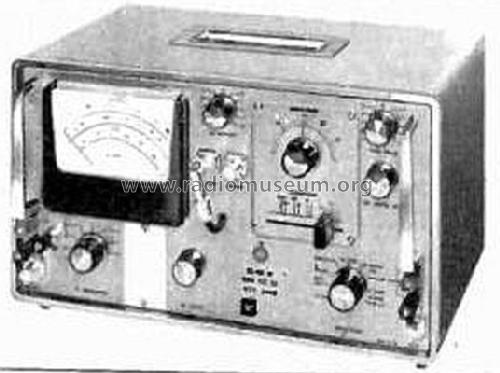

VHF/UHF FM Radio Test Set. A410
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1965
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 308739
Electronics Australia, April 1965, page 32.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Batteries (any type) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: VHF/UHF FM Radio Test Set. A410 - Amalgamated Wireless
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 14 x 8 x 8 inch / 356 x 203 x 203 mm
- Notes
-
The test instrument is designed for measuring receiver sensitivity, noise quieting, discriminator linearity and audio power output, transmitter deviation and RF power output.
It covers the range 30 to 520MHz.
- Net weight (2.2 lb = 1 kg)
- 17 lb 0 oz (17 lb) / 7.718 kg
- Mentioned in
- -- Original prospect or advert (Electronics Australia, April 1965, page 32.)
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
