• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1945 ??

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 199482

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 1C7G 1K5G 1K7G 1C7G 1K7G 1L5G 1L5G 807

• Main principle
• Transceiver; ZF/IF 460 kHz; 3 AF stage(s); Reflex

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

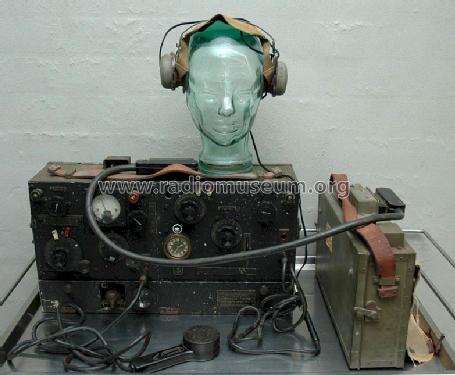

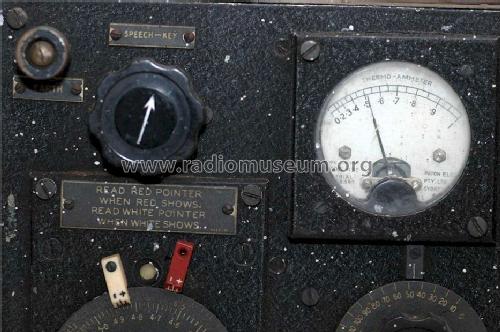

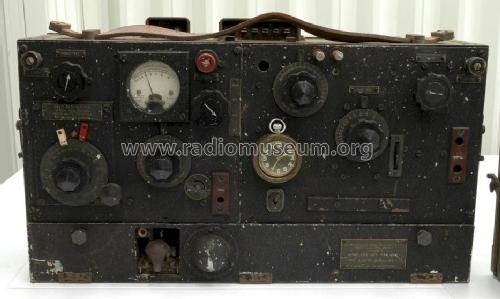

• Model: Wireless Set FS6 MK II - Amalgamated Wireless

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 510 x 280 x 160 mm / 20.1 x 11 x 6.3 inch

• Notes
• Coast Watcher Radio, Wireless Set FS6 MK II (Type 2J5775);
  CW & A3, powered by vibrator unit, made by Amalgamated Wireless.
  Please add informations regarding the type numbers if possible. Tuning range was 4.2 to 6.8 MHz.

• Literature/Schematics (2)
• Silicon Chip May 2002

• Author
• Model page created by a member from A. See "Data change" for further contributors.
