Penta-Quester

Amateur Wireless and Electrics & Amateur Wireless and RadioVision Magazines; London

Data
Forum
Pictures
Collections

  • Year
  • 1934
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 354747

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Batteries / addl. power jack / 2, 9, 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Penta-Quester - Amateur Wireless and Electrics
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes

  • The 1934 Penta-Quester radio, announced in April 1934, was a high-tech marvel for hobbyists. It used pentode valves for superior performance and boasted a unique clock-face tuning dial for easy station selection.

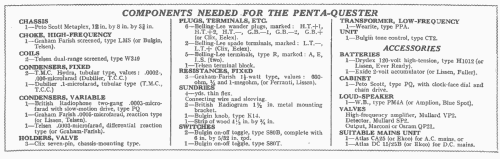

    Technical Summary of the 1934 Penta-Quester Radio:

    Circuit:

    • Battery-operated, 3-valve superheterodyne design
    • Uses pentode valves for high-frequency amplification, detection, and class-B output (novel for the time)
    • Two tuned circuits with a high-frequency transformer

    Tuning:

    • Dual-gang condenser for band selection
    • Clock-face tuning dial with independent condenser control
    • Local aerial system with metal bars integrated into the cabinet
    • Other Features:
    • Table style cabinet with self-contained batteries
    • Moving-coil loudspeaker
    • Wood chassis with metal baseboard and sub-chassis wiring
    • Double tone control (one fixed, one variable)
    • Input volume control via variable aerial condenser
    • Differential reaction condenser for smooth control
    • Pick-up terminals for connecting an external source (e.g., record player)

    Overall:

    The Penta-Quester was a technically advanced radio for its time, offering high performance and innovative features like the clock-face tuning dial and local aerial system.

    It was a popular design among amateur radio enthusiasts due to its use of pentode valves and its ability to receive stations with strong signal strength and good selectivity.

  • Mentioned in
  • -- Original prospect or advert (Amateur Wireless Apr 7, 1934, Page 363)
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
