- Country
- Argentina
- Manufacturer / Brand
- Ambassador Radio Argentina; Buenos Aires
- Year
- 1983 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332684
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / C: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

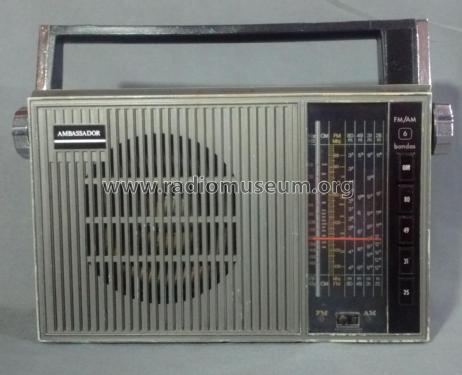

- Model: MG830 - Ambassador Radio Argentina;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 235 x 190 x 70 mm / 9.3 x 7.5 x 2.8 inch
- Notes
-
6 Bandas:
- FM 88 - 108 MHz
- OM 550 - 1600 kHz
- OC 80m
- OC 49m
- OC 41m
- OC 25m
- Net weight (2.2 lb = 1 kg)
- 1.3 kg / 2 lb 13.8 oz (2.863 lb)
- Author
- Model page created by Jorge Juan Stark. See "Data change" for further contributors.
