• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ambassador (brand), R. N. Fitton Ltd.; Brighouse, Yorkshire

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183852

• • Brand: Ambassador

• Number of Tubes
• 5

• Valves / Tubes
• 12K8GT 12K7GT 12Q7GT 35L6 35Z4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

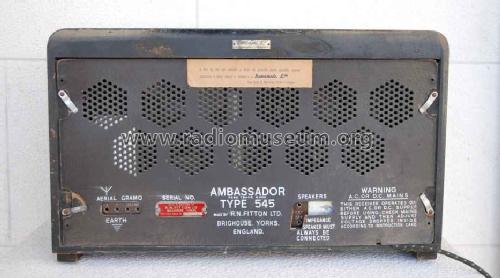

• Model: Ambassador 545 - Ambassador brand, R. N. Fitton

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 485 x 295 x 220 mm / 19.1 x 11.6 x 8.7 inch

• Net weight (2.2 lb = 1 kg)
• 8.8 kg / 19 lb 6.1 oz (19.383 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
