Aladdin AL80
Americana Industries Inc.; New York ( NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Americana Industries Inc.; New York ( NY)
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 125082
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Aladdin AL80 - Americana Industries Inc.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 66 x 107 x 36 mm / 2.6 x 4.2 x 1.4 inch
- Notes
-

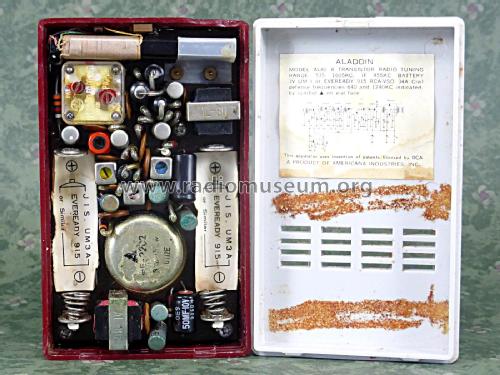

Aladdin Model AL80. AM only. 3 volts. Coinslot to open chassis at top of radio rather than at the bottom. Civil Defense marks on station dial.
Made in Japan
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 590 Folder 4 8-1962)
- Literature/Schematics (2)
- Transistor Radios (Model info on page 31)
- Literature/Schematics (3)
- Collector's Guide To TrR1 Bunis trans.94 (Model info on page 33)
- Literature/Schematics (4)
- Photofact TSM Transistor Radio Series SAMS (TSM-19 (January, 1963))
- Author
- Model page created by a member from A. See "Data change" for further contributors.
