Americana AM Cube Radio
Unknown - CUSTOM BUILT: China
- Country
- People's Republic of China
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: China
- Year
- 1985 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 219418
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage

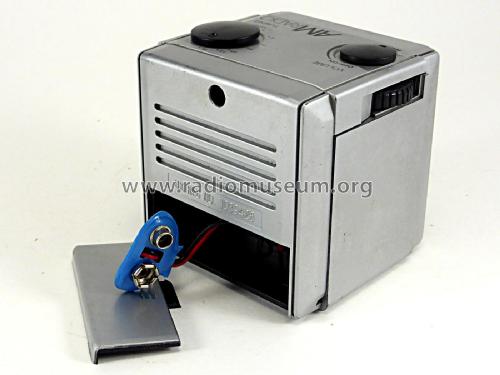

- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.15 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Americana AM Cube Radio - Unknown - CUSTOM BUILT: China
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 3 x 3 x 3 inch / 76 x 76 x 76 mm
- Notes
-

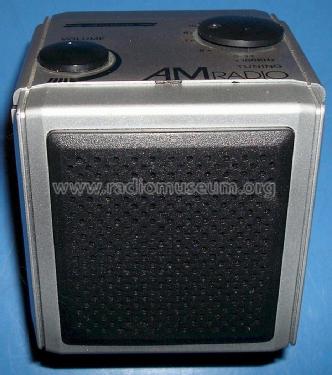

Americana Battery Operated AM Cube Radio.
Made in ChinaSee also the similar shaped models FM Cube Radio and UKW Cube Radio.
