2 and 6 Meter Transmitter TX-62
American Electronics Co.; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- American Electronics Co.; New York (NY)
- Year
- 1965
- Category
- Amateur Transmitter (only)
- Radiomuseum.org ID
- 275635
-
- Brand: Ameco
- Number of Tubes
- 6
- Main principle
- Transmitter
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: 2 and 6 Meter Transmitter TX-62 - American Electronics Co.; New
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 11.5 x 6 x 9.5 inch / 292 x 152 x 241 mm
- Notes
-

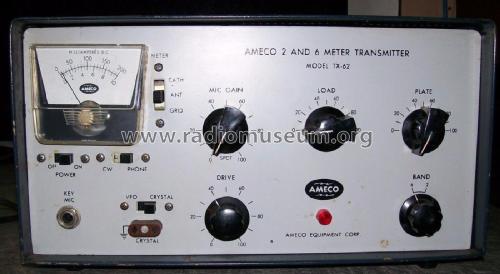

The Ameco TX-62 is a crystal controlled 2 and 6 meter transmitter with 75 watts on CW and AM. An external VFO can be used.
- Price in first year of sale
- 149.95 USD
- Mentioned in
- QST (April 1965 page 143)
- Literature/Schematics (1)
- Tube Type Transmitters (2nd edition page 9)
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
