D-2 Format Composite Digital Video Tape Recorder VPR-300

Ampex; San Carlos, CA

Data
Forum
Pictures
Collections

  • Year
  • 1990
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 358185

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Video-Taperecorder/-Player
  • Power type and voltage
  • Alternating Current supply (AC) / 90-135; 180-270 Volt
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: D-2 Format Composite Digital Video Tape Recorder VPR-300 - Ampex; San Carlos, CA
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 482 x 597 x 705 mm / 19 x 23.5 x 27.8 inch
  • Notes

  • The VPR-300 is a digital composite video recorder from Ampex. D-2 is a composite digital composite video format which uses 3/4" tape.

    Records NTSC & PAL formats. Also includes internal audio monitoring speakers in addition to a headphones jack.

    Available as Table Top (stated dimensions) or Rack Mount (432mm x 578mm x 705mm).



  • Net weight (2.2 lb = 1 kg)
  • 114 kg / 251 lb 1.6 oz (251.101 lb)
  • Mentioned in
  • -- Original prospect or advert (VPR 300 D-2 Format Composite Digital Recorder, Ampex Corp., P/N V-1434, dated 7/90)
  • Literature/Schematics (1)

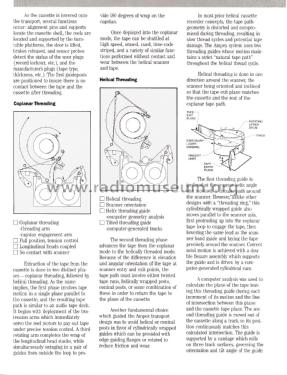

  • -- Original prospect or advert (The VPR-300 Series D-2 Composite Digital VTR From Ampex, P/N V-1422, dated 8/90)
  • Author
  • Model page created by Sandorne Marinkas. See "Data change" for further contributors.
