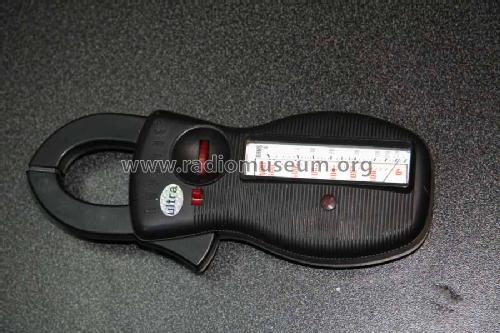

Clamp on meter RS-3

Amprobe Instruments, Long Island, NY.

Data
Forum
Pictures
Collections

  • Year
  • 1958 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 110216

 Technical Specifications

  • Number of Transistors
  • 1
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 1.5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Clamp on meter RS-3 - Amprobe Instruments, Long
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 65 x 180 x 30 mm / 2.6 x 7.1 x 1.2 inch
  • Notes

  • AC only: 5/15/40/100/300 A; 150/300/600 V;
    Ohms using a special probe with built in AA size battery. 0 - 2,000 Ω range.
    Accuracy 3% on full scale.

    Index locking device which allows the reading of the measured value even when the pincer has been released from the conductor under examination.

  • Net weight (2.2 lb = 1 kg)
  • 0.390 kg / 0 lb 13.7 oz (0.859 lb)
  • Source of data
  • - - Data from my own collection
  • Mentioned in
  • -- Original prospect or advert (L’Elettrotecnica, Ialy, number 8-bis, August 1958)
  • Author
  • Model page created by Petros Tsirvoulis. See "Data change" for further contributors.
