2771 Vacuum Tube Detector
Amrad Corporation; Medford Hillside (MA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Amrad Corporation; Medford Hillside (MA)
- Year
- 1923
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 32600
-
- alternative name: American Radio & Research
- Number of Tubes
- 1
- Valves / Tubes
- UV200
- Main principle
- Detector with Vacuum Tube (Valve), no tuner
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2771 Vacuum Tube Detector - Amrad Corporation; Medford
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 5 x 5 x 7.5 inch / 127 x 127 x 191 mm
- Notes

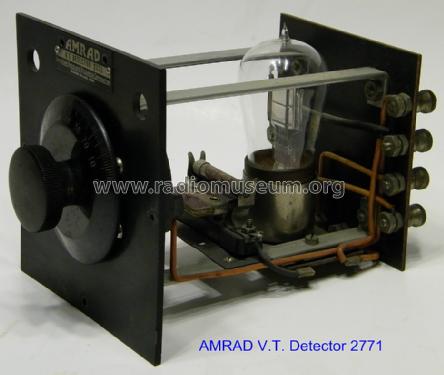

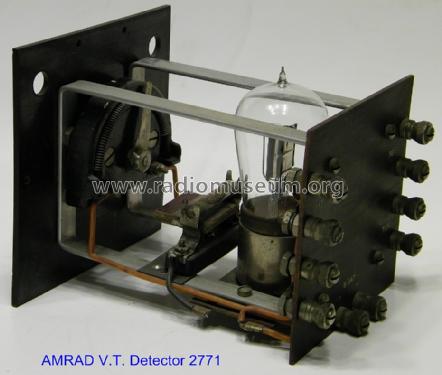

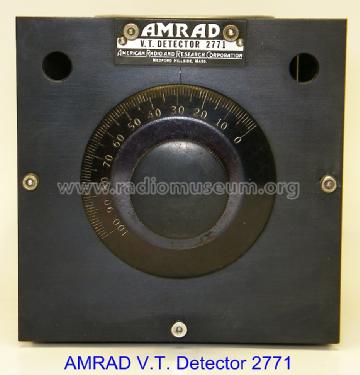

- The "Radio Collector's Guide 1921-1932" by Morgan E. McMahon lists this model on page 25 for 1923 under model 2771 with code "C" in the column for "Ciruits & Stages". This is explained on page 15 as "Crystal Receiver". Guest Joseph Woychowski, USA, has sent us photos as proof that it is in fact a self contained single vacuum tube detector . It's construction is basic, containing a UV tube socket, 5 ohm rheostat, grid condenser and a grid-leak resistor. The UV-200 is the tube of choice.
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Price in first year of sale
- 20.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
