Reflex Receiver 3366

Amrad Corporation; Medford Hillside (MA)

Data
Forum
Pictures
Collections

  • Year
  • 1922/1923
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 32601
    • alternative name: American Radio & Research

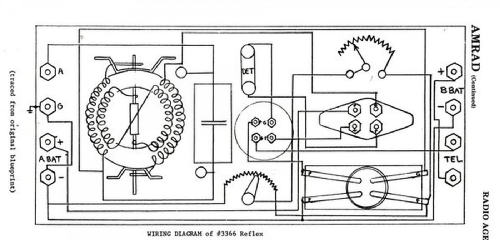

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Main principle
  • Crystal or Solid State Detector with Amplifer; Reflex
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

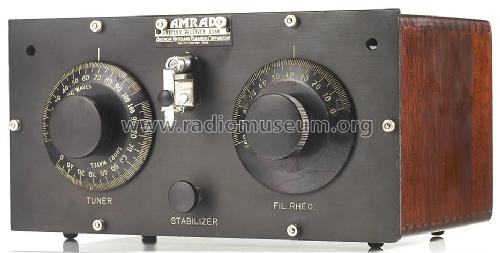

  • Model: Reflex Receiver 3366 - Amrad Corporation; Medford
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 10 x 5 x 7 inch / 254 x 127 x 178 mm
  • Notes

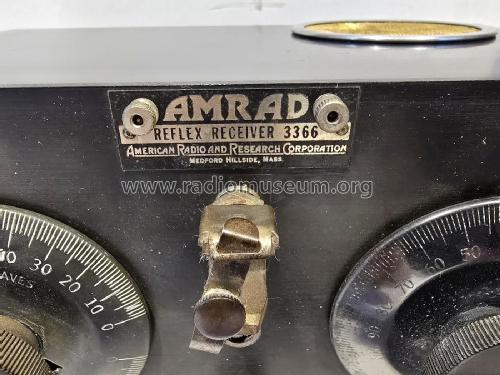

  • Amrad adopted the reflex circuit in 1922 using one tube to amplify at both RF and AF simultaneously. Design began in June 1922 and by August a new 1-tube receiver was ready for production. It was introduced mid-October, 1922 as the Type 3366 Reflex Receiver for $40.00. For a detector it used a plug-in holder on the front panel. It's catwhisker was held against the crystal by a small permanent magnet. The 3366 was reasonably popular and remained in the Amrad product line for the 1922-1923 season.

  • Price in first year of sale
  • 40.00 $
  • External source of data
  • Ernst Erb
