• Country
• United States of America (USA)

• Manufacturer / Brand
• Amrad Corporation; Medford Hillside (MA)

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 248051

• • alternative name: American Radio & Research

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 226 226 226 227 226 171A unknown_Tube

• Main principle
• TRF without regeneration; Neutrodyne

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

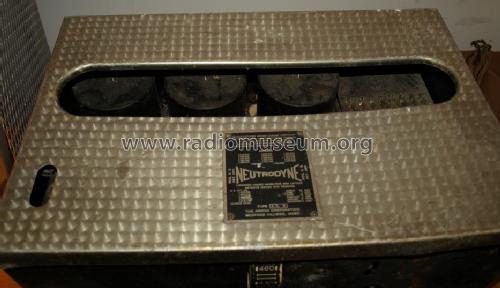

• Model: Chassis AC6 - Amrad Corporation; Medford

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• Chassis for Berwick AC6  and Warwick AC6.

• Author
• Model page created by Michael Watterson. See "Data change" for further contributors.
