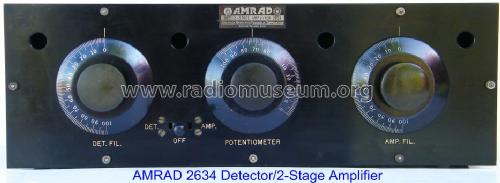

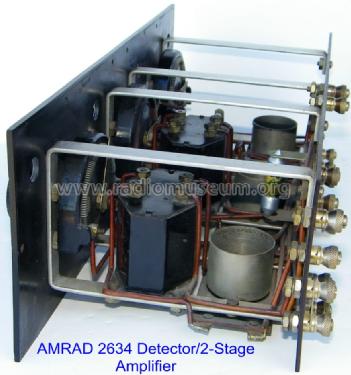

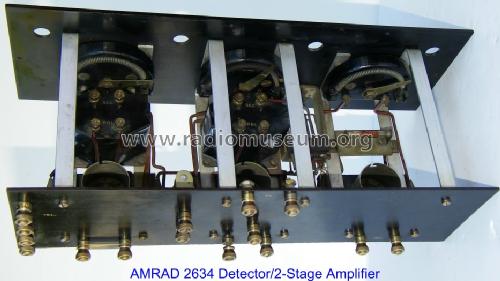

Detector /Two Stage AF Amplifier 2634
Amrad Corporation; Medford Hillside (MA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Amrad Corporation; Medford Hillside (MA)
- Year
- 1922
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 183123
-
- alternative name: American Radio & Research
- Number of Tubes
- 3
- Main principle
- Detector with Vacuum Tube (Valve), no tuner; 2 AF stage(s)
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Detector /Two Stage AF Amplifier 2634 - Amrad Corporation; Medford
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 10 x 5 x 6 inch / 254 x 127 x 152 mm
- Notes
- The Amrad Detector Two-Stage Amplifier 2634 was designed for use with the Amrad 2596 Short Wave Tuner. The model 2634 was also combined with model 3108 as a double-deker stacked set, called model 3380.
- Price in first year of sale
- 48.00 $
- Mentioned in
- Radio Manufacturers of the 1920s, Vol 1 (p.44)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
