- Country
- United States of America (USA)
- Manufacturer / Brand
- Amrad Corporation; Medford Hillside (MA)
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 302256
-
- alternative name: American Radio & Research
- Number of Tubes
- 7
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: F-716 - Amrad Corporation; Medford
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 16 x 21 x 9 inch / 406 x 533 x 229 mm
- Notes
-
Manufactured by the Crosley Radio Corp. Cincinnati, Ohio, USA using the Amrad name.

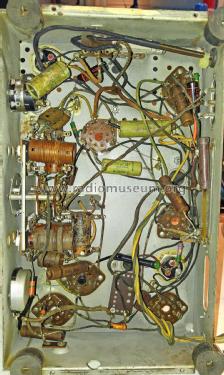

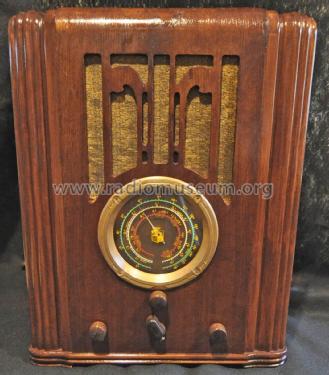

The pictures are from a radio on display at the National Voice of America Museum of Broadcast in West Chester, Ohio in the Powel Crosley Jr. Museum.
This model appears to have the same chassis as the Crosley 745. Also note that the Crosley uses chassis 716 which is similar to the model number for the Amrad F-716.
- Net weight (2.2 lb = 1 kg)
- 23.5 lb (23 lb 8 oz) / 10.669 kg
- Author
- Model page created by Leland Hite. See "Data change" for further contributors.
