Long Wave Tuner 2492 Type F

Amrad Corporation; Medford Hillside (MA)

Data
Forum
Pictures
Collections

  • Year
  • 1921
  • Category
  • Radio module pre 1926 (not a part, not a key)
  • Radiomuseum.org ID
  • 192032
    • alternative name: American Radio & Research

 Technical Specifications

  • Main principle
  • Tuner pre 1926 (not a wave trap)
  • Wave bands
  • Long Wave and/or Very Low Frequency (VLF).
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material

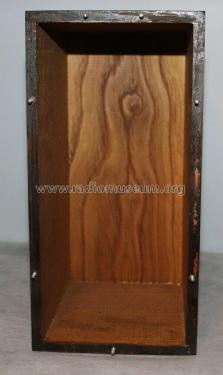

  • Wooden case
  • from Radiomuseum.org
  • Model: Long Wave Tuner 2492 Type F - Amrad Corporation; Medford
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 10 x 5 x 5 inch / 254 x 127 x 127 mm
  • Notes
  • The AMRAD No. 2492 Long Wave Tuner covered the wavelength range of 2,000 to 20,000 meters. It was used to receive Arlington time signals and the trans-Atlantic stations. The wavelength was changed by moving two brass plugs between sets of contacts on the face panel. The tuner needed two .001 mfd Variable Condensers and a VT Detector to make a complete receiver.
  • Price in first year of sale
  • 30.00 $
  • Literature/Schematics (1)
  • November 1921 QST rear cover
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
