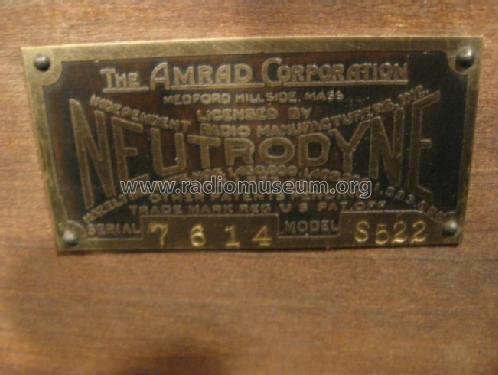

S522 Later model with Tuning dial windows
Amrad Corporation; Medford Hillside (MA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Amrad Corporation; Medford Hillside (MA)
- Year
- 1926
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 32648
-
- alternative name: American Radio & Research
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 2 AF stage(s); Neutrodyne
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 6 & 16-45 & 90 & -? Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: S522 [Later model with Tuning dial windows] - Amrad Corporation; Medford
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Three dials (primary tuning control knobs)
By 1927 it could have a UX112A with half of the cathode current than the UX112, but not before.
- Price in first year of sale
- 60.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (3)
- Radio Manufacturers of the 1920s, Vol 1 (Page 48)
