• Country
• Netherlands

• Manufacturer / Brand
• Amroh NV (Radio Bulletin monthly), Muiden

• Year
• 1959

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 258658

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 12AX7 6AQ8 6BQ5 EM34 6BQ5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• 110; 127; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 11 W (max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: Bandrecorderversterker Capriccio - Amroh NV Radio Bulletin

• Shape
• Chassis only or for «building in»

• Notes

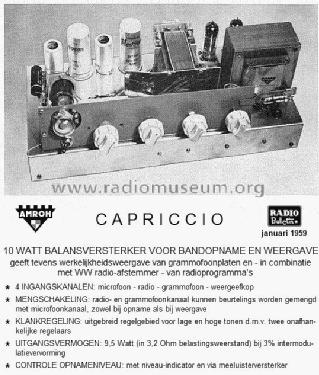

• Amplifier model "Capriccio" is especially designed to form a combination with Amroh's Fonolint Recorder Decks, like model Fonolint Tape Recorder Deck I.

  Various documents published by Amroh show varying information about the output power of this amplifier. However, those information has in common that the maximum output is 11 W.

• Mentioned in
• Radio Bulletin (January 1959)

• Literature/Schematics (1)
• Bandrecorderversterkers voor zelfbouw (1961)

• Author
• Model page created by Rob Majoor. See "Data change" for further contributors.
