Batterijontvanger M.K. Paradyne
Amroh NV (Radio Bulletin monthly), Muiden
- Country
- Netherlands
- Manufacturer / Brand
- Amroh NV (Radio Bulletin monthly), Muiden
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 255620
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 1,5 & 90 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 0.16 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org

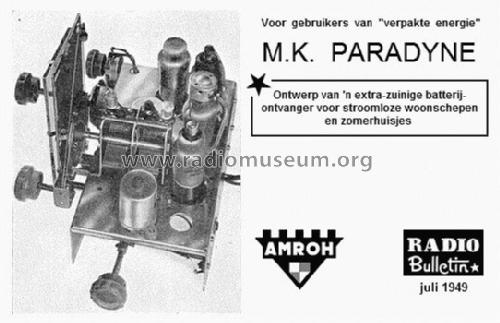

- Model: Batterijontvanger M.K. Paradyne - Amroh NV Radio Bulletin
- Shape
- Chassis only or for «building in»
- Notes
-
Apart from the external loudspeaker, also the L.S. output transformer is externally mounted. For the DL21 the primary impedance of this transformer is 22.5 kOhms.
- Mentioned in
- Radio Bulletin (July 1949)
- Author
- Model page created by Rob Majoor. See "Data change" for further contributors.
