• Country
• Netherlands

• Manufacturer / Brand
• Amroh NV (Radio Bulletin monthly), Muiden

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 256184

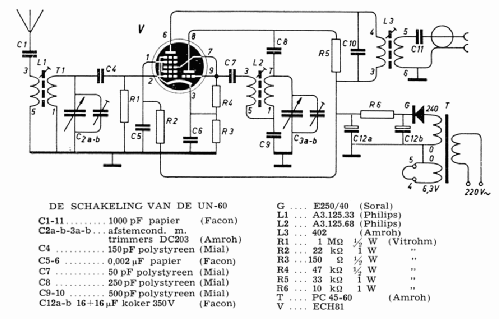

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECH81

• Main principle
• RF Converter/Adapter (not voltage converter); ZF/IF 600 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Convertor voor de Visserijband UN-60 - Amroh NV Radio Bulletin

• Shape
• Chassis only or for «building in»

• Notes

• Wave band: Fishery band 1600 kHz - 5000 kHz.

• Mentioned in
• Radio Bulletin (May 1962)

• Author
• Model page created by Rob Majoor. See "Data change" for further contributors.
