Grammofoon/microfoonversterker Parsifal

Amroh NV (Radio Bulletin monthly), Muiden

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 307593

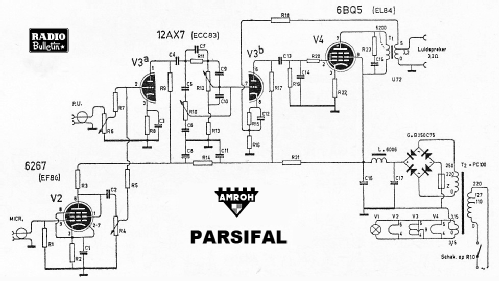

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 3.8 W (max.)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Grammofoon/microfoonversterker Parsifal - Amroh NV Radio Bulletin
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 390 x 170 x 170 mm / 15.4 x 6.7 x 6.7 inch
  • Notes

  • Note on the tubes: 6267 can be replaced by EF86; 12AX7 = ECC83 and 6BQ5 = EL84.

    The cabinet of the Parsifal is called the 'Universum' cabinet. Its price was NLG 27.50
    For this cabinet a special chassis was available. Its price was NLG 8.50.
    The price of the front plate mentioning 'Parsifal' was NLG 2.00.

    See also Amroh-model Deuteron.

  • Price in first year of sale
  • 137.50 NLG
  • Mentioned in
  • Amroh Jaarboek 1961
  • Author
  • Model page created by Rob Majoor. See "Data change" for further contributors.
