Hollands Glorie Ontvanger

Amroh NV (Radio Bulletin monthly), Muiden

Data
Forum
Pictures
Collections

  • Year
  • 1962
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 127736

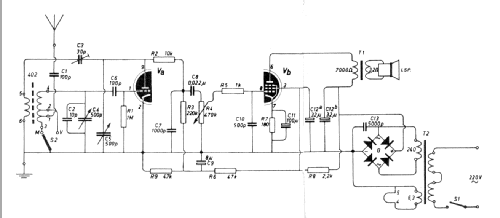

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW), Police, sometimes also early TV (75-200m).
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Hollands Glorie Ontvanger - Amroh NV Radio Bulletin
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 250 x 197 x 128 mm / 9.8 x 7.8 x 5 inch
  • Notes
  • Bauanleitung, veröffentlicht in Elektronik-Zeitschrift für Kinder ("Radio Blan"), später auch in einem Buch ("Jongens Radio"). Einkreiser (Audion mit Rückkopplung), Empfang von Mittelwelle und Fischereiband, Lautsprecher-Wiedergabe (Peerless LE 35 PR). "Hollands Glorie" genannt nach einem Roman von Jan de Hartog.
  • Price in first year of sale
  • 58.00 HFl
  • Source of data
  • -- Original-techn. papers.
  • Mentioned in
  • Radio Blan, No. K, pp. 4 - 7, Februar 1962
  • Literature/Schematics (1)
  • M. van Geelkerken, "Jongens Radio", Bussum, De Muiderkring 1971, pp. 44 - 52 (17e druk)
  • Author
  • Model page created by Aren van Waarde. See "Data change" for further contributors.
