- Country
- Netherlands
- Manufacturer / Brand
- Amroh NV (Radio Bulletin monthly), Muiden
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 224450

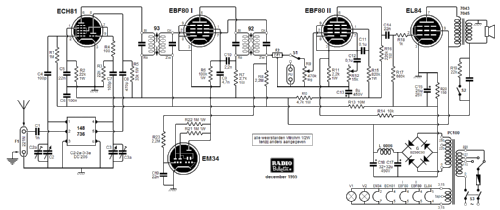

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Novalette - Amroh NV Radio Bulletin
- Shape
- Chassis only or for «building in»
- Notes
-
The power voltage rectifier (G) is the bridge Selenium type B250C90. The AF detection is done by the 2 diodes in the 2nd EBF80. The front of this model is separately available, as is the Peerless loudspeaker.
- Mentioned in
- Radio Bulletin
- Literature/Schematics (1)
- December 1955
- Author
- Model page created by Rob Majoor. See "Data change" for further contributors.
