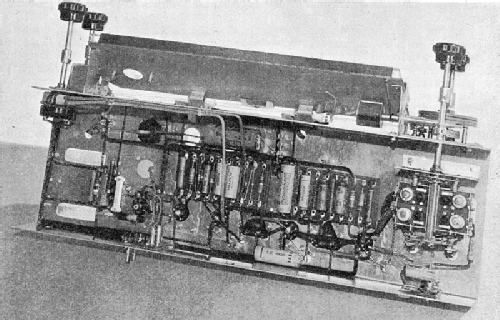

Pin-up Super U-51A

Amroh NV (Radio Bulletin monthly), Muiden

Data
Forum
Pictures
Collections

  • Year
  • 1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 244169

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • AC/DC-set / 127/220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 4.25 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Pin-up Super U-51A - Amroh NV Radio Bulletin
  • Shape
  • Chassis only or for «building in»
  • Notes

  • Golfbereiken spoeleenheid 736: MG (Broadcast), LG (LW), KG (SW);

    Golfbereiken spoeleenheid 148: MG (Broadcast), LG (LW), KG (SW), VG (Fishery).

    Het bereik van de Visserijband (VG) loopt van 60 - 175 m.





  • Author
  • Model page created by Rob Majoor. See "Data change" for further contributors.
