• Country
• Netherlands

• Manufacturer / Brand
• Amroh NV (Radio Bulletin monthly), Muiden

• Year
• 1960

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 128850

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• OC3

• Main principle
• Audio-Amplification; 1 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 4,5 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Step by Step Ausbaustufe 2 - Amroh NV Radio Bulletin

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 170 x 100 x 50 mm / 6.7 x 3.9 x 2 inch

• Notes

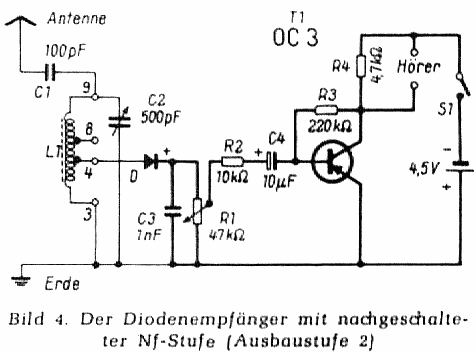

• Einstufiger NF-Verstärker als Erweiterung der Ausbaustufe 1 (Dioden-Empfänger).

• Mentioned in
• Funkschau (FS 1960 Heft 16 S.411/412)

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
