Step By Step Nuova 1 + 1a
Amroh NV (Radio Bulletin monthly), Muiden
- Country
- Netherlands
- Manufacturer / Brand
- Amroh NV (Radio Bulletin monthly), Muiden
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 231737
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 3
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
- Power out
- 0.27 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Step By Step Nuova 1 + 1a - Amroh NV Radio Bulletin
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Step by Step Nuova was introduced in this edition of Radio Blan.

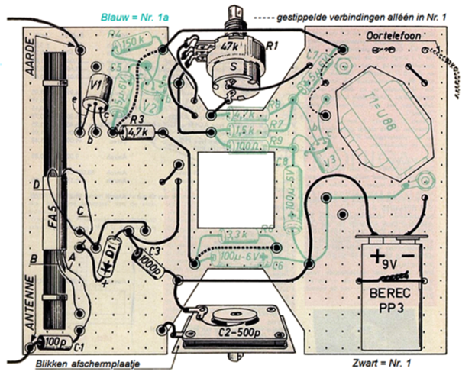

Model 1a is an extension of model 1 (with two transistors stages and a loudspeaker).
Unlike the older SBS kits, this series of three Nuova receivers was not sold as a kit.
- Mentioned in
- Radio Blan edition 28, 1 februari 1965
- Author
- Model page created by Rob Majoor. See "Data change" for further contributors.
