- Country
- Netherlands
- Manufacturer / Brand
- Amroh NV (Radio Bulletin monthly), Muiden
- Year
- 1961
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 119855

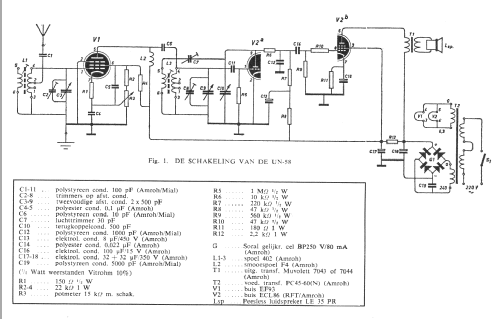

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: UN-58 - Amroh NV Radio Bulletin
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 250 x 197 x 120 mm / 9.8 x 7.8 x 4.7 inch
- Notes
- Zweikreiser, nur Mittelwellenempfang, Bausatz der Firma Amroh (Muiden, Niederlande). Man nennte es: "Selektiver Zweikreiser mit der Empfindlichkeit einer Superheterodyne"
- Mentioned in
- - - Manufacturers Literature (Radio Bulletin, Juni 1961)
- Literature/Schematics (1)
- - - Manufacturers Literature (Buch: Ing.M.van Geelkerken, Jongens Radio, Bussum: De Muiderkring, 1971, pag.53-54)
- Author
- Model page created by Aren van Waarde. See "Data change" for further contributors.
