- Country
- Netherlands
- Manufacturer / Brand
- Amroh NV (Radio Bulletin monthly), Muiden
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122300
Picture taken from the header of the article

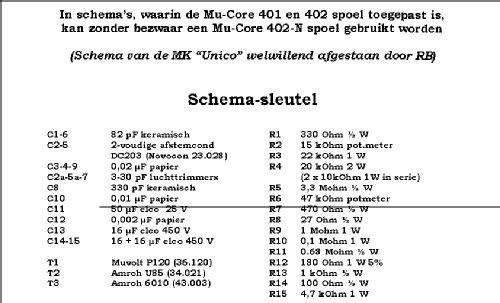

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 4.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: MK Unico - Amroh NV Radio Bulletin
- Shape
- Chassis only or for «building in»
- Notes
-
Zweikreiser fur Mittelwelle, veröffentlicht in Elektronik-Zeitschrift Radio Bulletin, etwa 1950. Wurde gebaut mit zwei "MuCore 402" Spulen der Firma Amroh.
Loudspeaker transformer T2 is to be mounted on or near the loudspeaker itself.
- Mentioned in
- Radio Bulletin juni 1950
- Author
- Model page created by Aren van Waarde. See "Data change" for further contributors.
