• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1974 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 355754

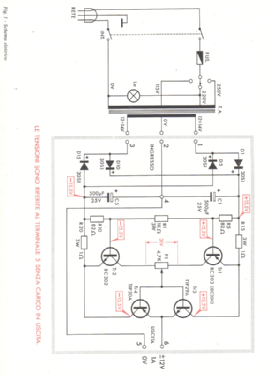

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• BC302 BC303 or. BC304 TIP29 TIP30 30S1 30S1 30S1 30S1

• Power type and voltage
• Alternating Current supply (AC) / 115; 220; 250 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Alimentatore e regolatore di velocità per trenini elettrici UK 693 - Amtron, High-Kit, Amtroncraft;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 77 x 105 x 49 mm / 3 x 4.1 x 1.9 inch

• Notes

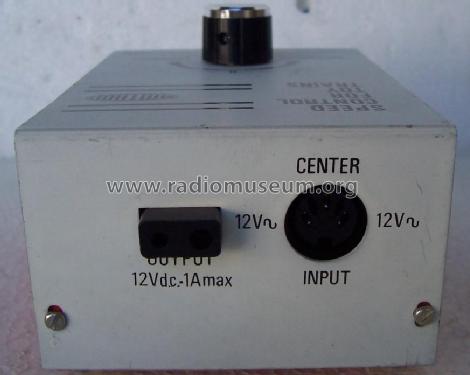

• Amtron model UK693, alimentatore e regolatore di velocità per trenini elettrici (power supply + speed control for toy trains).

  Alimentazione Iin corrente alternata 12/14-0-12/14  presa centrale.

  Possibilità di regolazione, continua, avanti-indietro, monocomando.

• Net weight (2.2 lb = 1 kg)
• 0.260 kg / 0 lb 9.2 oz (0.573 lb)

• Mentioned in
• -- Schematic

• Author
• Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
