• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1970 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 161086

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

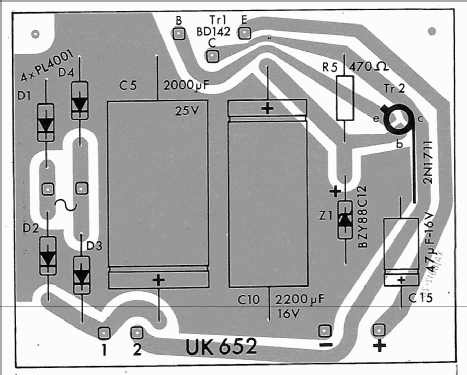

• BD142 2N1711 BZY88

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 220; 250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

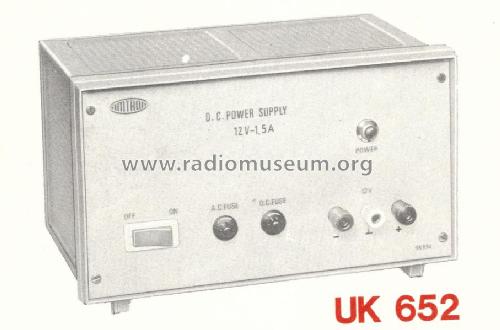

• Model: Alimentatore stabilizzato UK652 - Amtron, High-Kit, Amtroncraft;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 235 x 130 x 150 mm / 9.3 x 5.1 x 5.9 inch

• Notes

• Alimentatore stabilizzato 12Vc.c. 1,5A
  Caduta di tensione tra carico nullo e pieno carico: meno di 0,3V
  Residuo ronzio: meno di 2mV
  Apparecchio in scatola di montaggio (Kit)

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Literature/Schematics (1)
• Selezione Radio-TV, Novembre 1973

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
