• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1972

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 204016

• Number of Tubes
• 0

• Valves / Tubes
• 10D2 10D2

• Number of Transistors
• 3

• Semiconductors
• BC107 BC107 AD143 AA119 1Z13

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Alimentatore stabilizzato UK650/C - Amtron, High-Kit, Amtroncraft;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 170 x 110 x 220 mm / 6.7 x 4.3 x 8.7 inch

• Notes
• Tensione in uscita: 0 - 12 Vc.c.
  Corrente di uscita: 1 A
  Limitazione di corrente a regolazione continua: da 0,1 - 0,4 A e da 0,5 - 1 A
  Protezione cortocircuito
  Stabilità 3% per variazioni del carico: 0 - 100%.

  Apparecchio in scatola di montaggio (kit) o preassemblato.

• Literature/Schematics (1)

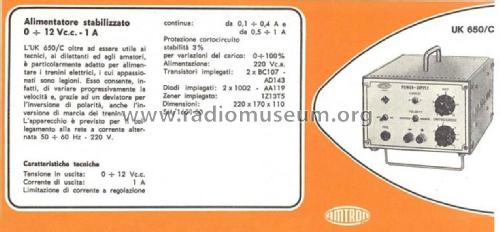

• Amtron Catalogo Kit N.6
