• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1972 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 199852

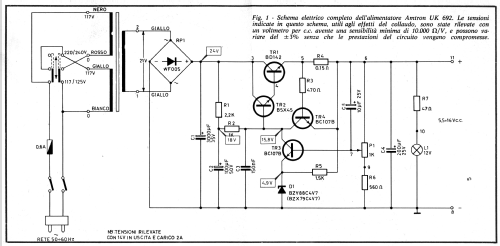

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• BD142 BSX45 BC107 BC107 BZY88 or. BZX79

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117/125 - 220/240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Alimentatore stabilizzato UK692 - Amtron, High-Kit, Amtroncraft;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 235 x 150 x 130 mm / 9.3 x 5.9 x 5.1 inch

• Notes
• Dissipazione di potenza: circa 50 VA
  Tensione stabilizzata di uscita: regolabile da 5,5 a 16 V con regolazione continua mediante controllo potenziometrico
  Massima variazione tensione di uscita tra funzionamento a vuoto e funzionamento a pieno carico, con uscita massima: circa 0,2 V
  Ondulazione residua («ripple») con carico massimo di 2 A: 0,6 mV eff.

  Ponte raddrizzatore monofase WF005, diodo zener BZY88C4V7.

• Source of data
• -- Original prospect or advert

• Mentioned in
• Amtron Catalogo Kit N.6

• Author
• Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
