• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1975–1977

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 243858

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BC107 BD135 BD142 BAY44 BZY88 30S1 30S1 30S1 30S1

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 220; 250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

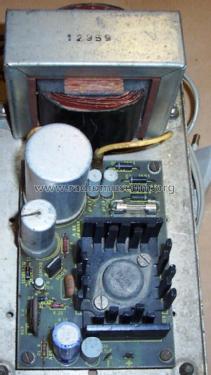

• Model: Alimentatore stabilizzato 30V - 1A UK657 - Amtron, High-Kit, Amtroncraft;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 110 x 75 x 75 mm / 4.3 x 3 x 3 inch

• Notes

• Questo alimentatore eroga una tensione stabilizzata di 30 Volt con una corrente erogabile massima 1 Ampere. Variazione della corrente erogata tra 0 e pieno carico 0,5%. Variazione ammessa nella tensione di rete +/- 10%.

  Le misure ed il peso sono senza il trasformatore di alimentazione.

  Prezzo 1976-77: 9.000 Lire.

• Net weight (2.2 lb = 1 kg)
• 0.165 kg / 0 lb 5.8 oz (0.363 lb)

• Price in first year of sale
• 12,500.00 ITL

• Mentioned in
• - - Manufacturers Literature (catalogo Amtron Kit Elettronici n. 7)

• Literature/Schematics (1)
• Amtroncraft Kits Pocketbook of Kits, n.9, 1975-76, n. 10, 1976-77

• Author
• Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
