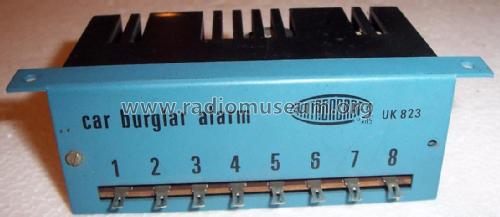

Allarm per Auto - Car Burglar Alarm UK 823
Amtron, (High-Kit, Amtroncraft); Milano
- Country
- Italy
- Manufacturer / Brand
- Amtron, (High-Kit, Amtroncraft); Milano
- Year
- 1974 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 278338
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 3
- Wave bands
- - without
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Allarm per Auto - Car Burglar Alarm UK 823 - Amtron, High-Kit, Amtroncraft;
- Shape
- Chassis only or for «building in»
- Notes
-
Consente la protezione di un veicolo parcheggiato, con estensione agli accessori. L'intervento dell'avvisatore è predisposto con un opportuno ritardo in modo da permettere di installare l'interruttore di attivazione all'interno della vettura.
Nel caso che vengano ripristinate le condizioni iniziali l'avvisatore cessa automaticamente di suonare dopo circa un minuto, lasciando l'antifurto nuovamente pronto.
Alimentazione: 12 Vcc. Consumo a riposo:+- 14 mA. Consumo in pre-allarme: +- 17 mA. Consumo in allarme: +- 240 mA.
Diodi impiegati: 7x 1N4001. Zener impiegati: 2x BZY88C7 V5.
Tempo di predisposizione: 10-15". Tempo di intervento: 8-10". Tempo di eccitazione: 40-60". Corrente massima di commutazione: 8A.
- Literature/Schematics (1)
- Descrizione e specifiche di montaggio originali Amtron
- Author
- Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
