Allarme capacitivo o per contatto UK 885
Amtron, (High-Kit, Amtroncraft); Milano
- Country
- Italy
- Manufacturer / Brand
- Amtron, (High-Kit, Amtroncraft); Milano
- Year
- 1971 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 316310
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Allarme capacitivo o per contatto UK 885 - Amtron, High-Kit, Amtroncraft;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
L'UK885 consente di realizzare un interessantissimo dispositivo di allarme che può funzionare, mediante una semplice modifica circuitale, tanto per azione capacitiva quanto per contatto. Grazie a questa particolarità questo apparecchio può essere utilizzato per una vasta gamma di applicazioni.
- Mentioned in
- Sperimentare n. 10/1971
- Literature/Schematics (1)

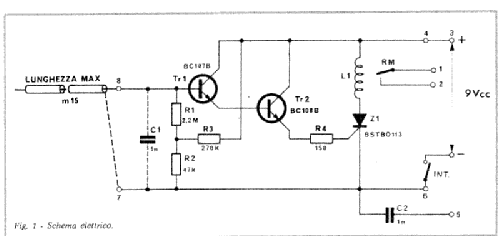

- -- Schematic
- Author
- Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
