• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1972

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 204029

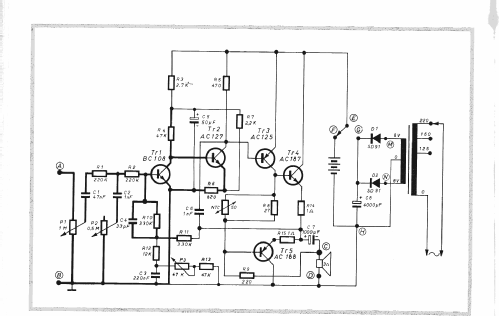

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BC108 AC187 AC188 AC127 AC125 SD91 SD91

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / AC: 125; 160; 220 / 9 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Amplificatore 3W UK32/C - Amtron, High-Kit, Amtroncraft;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 95 x 40 x 80 mm / 3.7 x 1.6 x 3.1 inch

• Notes
• Potenza in uscita: 3 W di picco
  Risposta di frequenza: 60 - 15000 Hz
  Impedenza: 3-4 Ohm
  Alimentazione c.a. con trasformatore.

  Apparecchio in scatola di montaggio (kit) o preassemblato.

• Literature/Schematics (1)

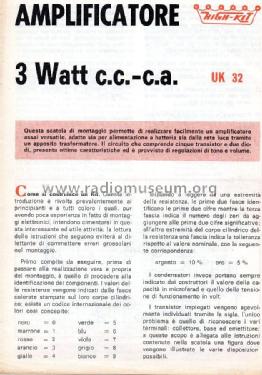

• Amtron Catalogo Kit N.6
