• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1972

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 204027

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• TAA611

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Batteries / addl. power jack / 15 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

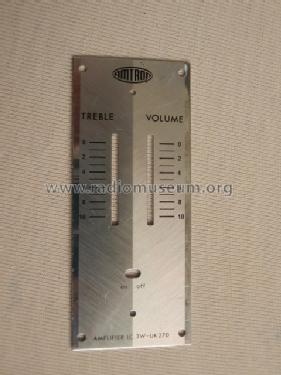

• Model: Amplificatore a circuito integrato 6W UK270 - Amtron, High-Kit, Amtroncraft;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 118 x 49 x 54 mm / 4.6 x 1.9 x 2.1 inch

• Notes
• Resistenza di carico: 8 Ohm
  Potenza di uscita: 6 W di picco
  Sensibilità d'ingresso « 1 » a 1000 Hz: 200 mV
  Sensibilità d'ingresso « 2 » a 1000 Hz: 230 mV
  Risposta in frequenza (3 dB): 50 - 15000 Hz
  Impedenza d'ingresso « 1 » a 1000 Hz: 150 kOhm
  Impedenza d'ingresso « 2 » a 1000 Hz: 220 kOhm
  Alimentazione: 15 V max
  Integrato impiegato: TAA 611/C.

  Apparecchio in scatola di montaggio (kit) o preassemblato.
