Amplificatore a Radio Frequenza UK 915

Amtron, (High-Kit, Amtroncraft); Milano

Data
Forum
Pictures
Collections

  • Year
  • 1971 ?
  • Category
  • RF (Radio Frequency-) Amplifier
  • Radiomuseum.org ID
  • 319850

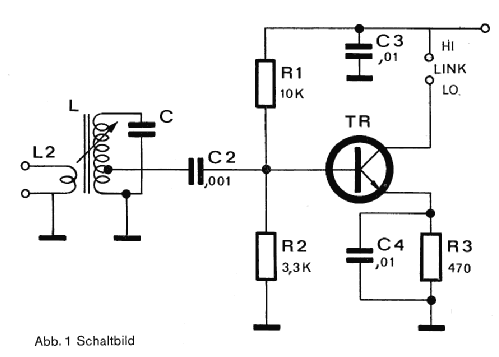

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 1
  • Main principle
  • Radio Frequency Amplification only
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 6-12 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Printed Circuit Board
  • from Radiomuseum.org
  • Model: Amplificatore a Radio Frequenza UK 915 - Amtron, High-Kit, Amtroncraft;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 40 x 30 x 40 mm / 1.6 x 1.2 x 1.6 inch
  • Notes

  • Ampilificatore a radiofrequenza operante nella vasta gamma 12 ÷ 170 MHz. Mediante 2 bobine intercambiabili accoppiate a diversi condensatori, si ottiene la divisione in 11 gamme di frequenza. Ingresso ed uscita a bassa impedenza.

  • Mentioned in
  • -- Original prospect or advert (Catalogo Amtron “Scatole di Montaggio Elettroniche” n° 6 1972/1973.)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Amtron Elektronik-Bausätze, Bauanleitungen 1971/72 (deutsch))
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
