• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1972

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 204023

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BC108 AD161 AD162 AC127 AC128

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 24 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (unknown quality)

• Material
• Printed Circuit Board

• from Radiomuseum.org

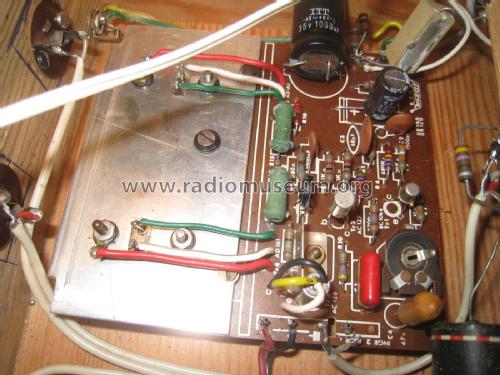

• Model: Amplificatore Hi-Fi 12W UK120 - Amtron, High-Kit, Amtroncraft;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 95 x 70 x 80 mm / 3.7 x 2.8 x 3.1 inch

• Notes

• Potenza in uscita: 12 W di picco
  Risposta di frequenza: 20 - 20000 Hz
  Sensibilità: 2 mV
  Impedenza: 8 Ω.

  Apparecchio in scatola di montaggio (kit) o preassemblato.

• Literature/Schematics (1)
• Amtron Catalogo Kit N.6

• Literature/Schematics (2)
• Amtron Katalog 71/72

• Literature/Schematics (3)
• -- Original-techn. papers. (Catalogo Amtron 1972/73)
