• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1970 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 199808

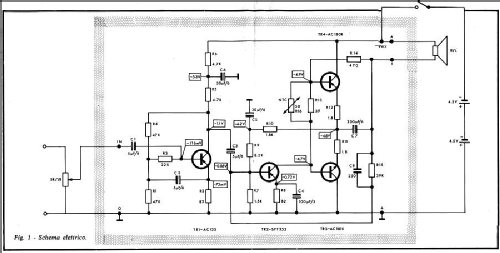

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• AC125 SFT353 AC181 AC180

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 1.5 W (unknown quality)

• Material
• Printed Circuit Board

• from Radiomuseum.org
• Model: Amplificatore 1,5W UK145 - Amtron, High-Kit, Amtroncraft;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 120 x 80 x 30 mm / 4.7 x 3.1 x 1.2 inch

• Notes
• Potenza in uscita musicale: 1,5 W
  Potenza in uscita a 1 kHz (D = 10%): 0,5 W
  Resistenza di carico (imped. dell'altoparlante): 8 Ohm
  Resistenza d'ingresso (1 kHz): 5 kOhm
  Sensibilità: per P_usc = 0,5 W: 10 mV
  Gamma di frequenza: (a 3 dB) 100 - 20000 Hz
  Assorbimento a P_usc = 0: 12 mA
  Assorbimento a P_usc = 0,5 W: 120 mA.
