• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1978 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 209037

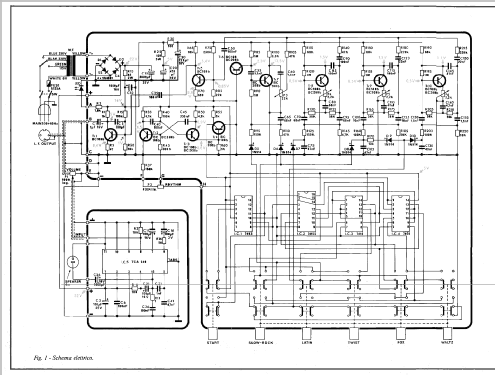

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• SN7400 SN7410 SN7493 SN74155 TCA940

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115/220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Batteria elettronica UK-262 - Amtron, High-Kit, Amtroncraft;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 300 x 65 x 215 mm / 11.8 x 2.6 x 8.5 inch

• Notes
• Generatore di ritmi amplificato,uscita altoparlante 4 Ohm,uscita per amplificatore esterno 200 mV,regolazione velocita'del ritmo e di volume,ritmi: slow rock,latin twist,fox,waltz,distribuito dalla GBC di MILANO in (kit) o preassemblato.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Pasquale Baiocato. See "Data change" for further contributors.
